Weld Inspection and Testing in New Hampshire

Roadsafe LLC supports municipalities, fabricators, and contractors with local ultrasonic and magnetic particle weld inspection services in New Hampshire and throughout New England. We have experience performing non-destructive testing (NDT) to many standards and on many types of structures.

From textile mills to distilleries and steel fabrication shops in New Hampshire, we help businesses across the Granite State meet their nondestructive testing (NDT) needs. Our experience includes working with a wide range of facilities to provide reliable weld testing and inspection services that support safety, compliance, and long-term infrastructure integrity.

Common Applications of Weld Inspection

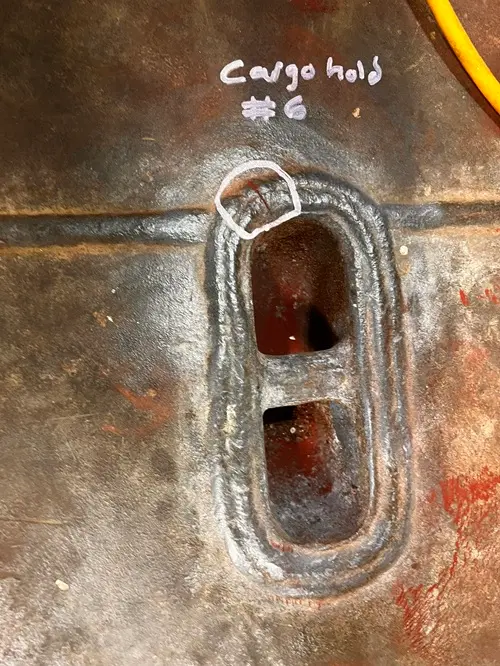

Ultrasonic weld inspection and magnetic particle testing is used for ensuring compliance of welded connections in pressure vessels, bridges, piers, structural framing, anchor bolts, railcars, bobtails and propane tankers such as MC-330 & MC-331 cargo tanks, construction and maintenance equipment, ships, and steel boat hulls.

Useful to metal fabricators, general contractors, heavy truck and railcar repair shops, ship builders, pressure vessel owners and inspectors, as well as municipal facilities.

Contact Us

Archie Ray
ASNT NDT L-III

(207) 357-5986Call

archie@roadsafellc.comEmail

All NDT services
NDT for Municipalities
NDT for Contractors
NDT for Repair Shops

Weld Inspection and Weld Testing in New Hampshire

Ultrasonic Weld Inspection

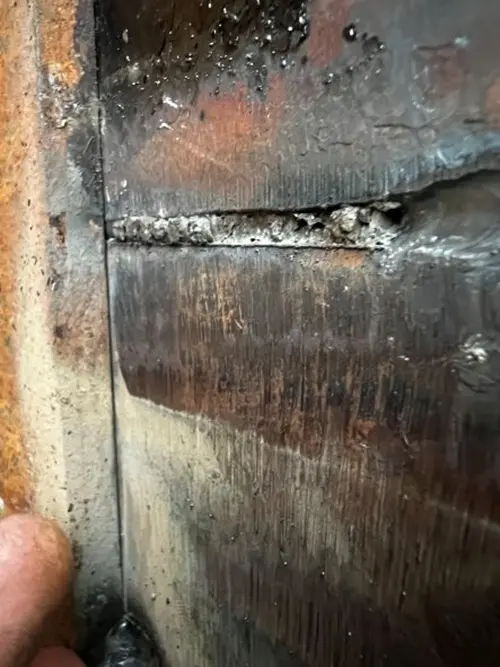

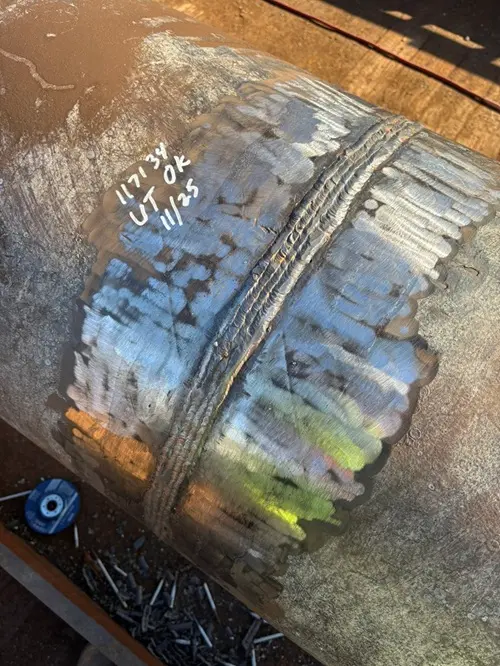

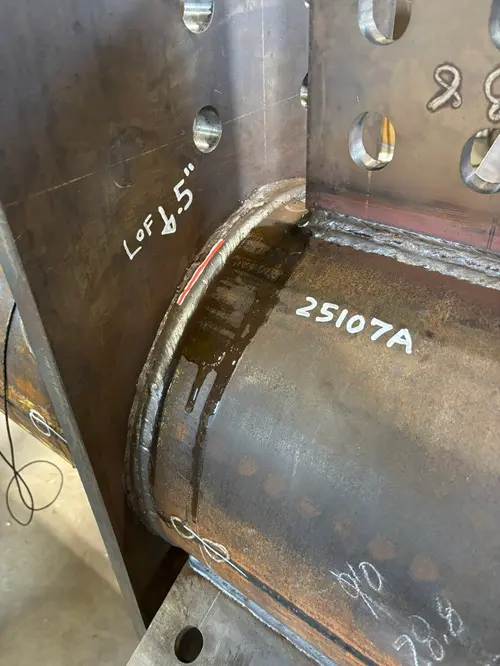

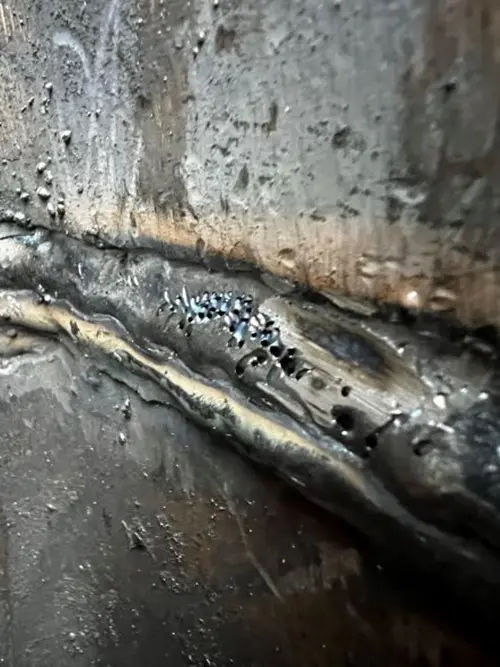

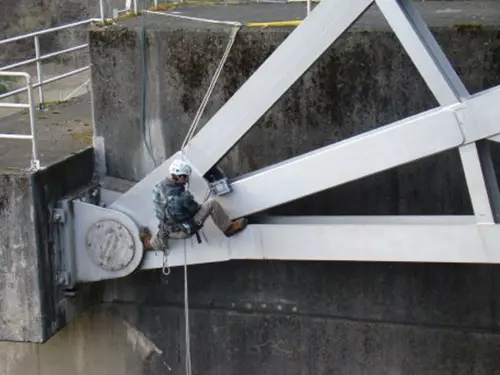

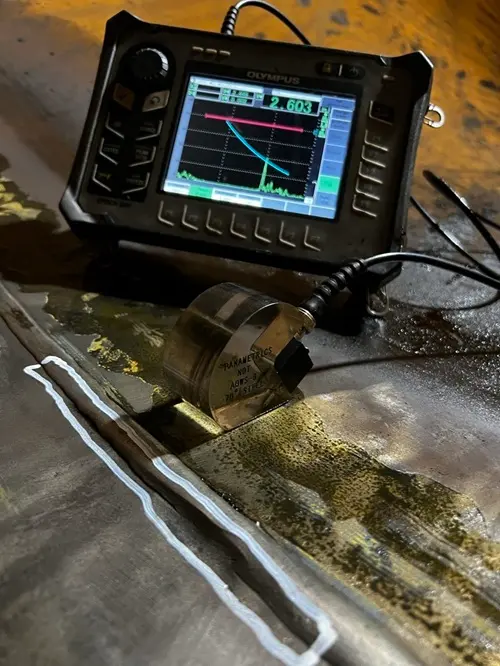

Ultrasonic weld inspection (shear wave testing) is widely used throughout New Hampshire to examine welds in piping systems, structural steel, bridges, bridge piles, boilers, ships, railcars, and other safety-critical structures for defects that could compromise structural integrity. UT is a nondestructive examination method that uses angled ultrasonic sound waves to inspect welds and the adjacent heat-affected zone (HAZ) for discontinuities such as cracks, lack of fusion, incomplete penetration, slag inclusions, and other internal flaws. Reflections from these discontinuities are detected and displayed on an ultrasonic flaw detector, allowing the inspector to locate, characterize, and size indications. To ensure accurate evaluation, the equipment is calibrated using reference standards or calibration blocks made from similar materials and containing known reflectors.

Magnetic Particle Weld Inspection

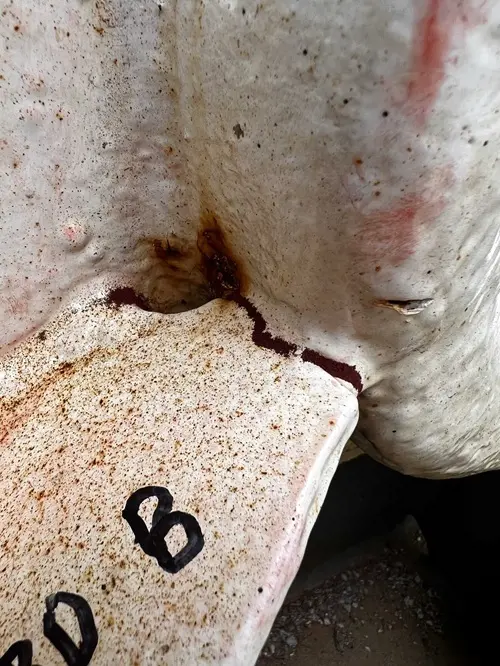

Magnetic particle testing (MT) is used throughout New Hampshire to inspect welded components and structures including bridges, pressure vessels, MC-330 and MC-331 cargo tanks, and other safety-critical equipment for cracks and discontinuities that could propagate and lead to unsafe conditions. MT is a nondestructive examination method used on ferromagnetic materials to detect surface and near-surface defects such as cracks, laps, seams, and lack of fusion. During the inspection, the component is magnetized and magnetic particles (dry or wet, visible or fluorescent) are applied to the test area. Discontinuities disrupt the magnetic field and create leakage fields that attract the particles, producing visible indications that reveal the location and extent of the defect.
